Pristine Laser Restoration provides laser surface preparation for non-destructive testing across Missouri, Kansas, Oklahoma, and Arkansas. Our fiber laser removes rust, paint, scale, grease, and oxides from weld surfaces, structural components, piping, and fabrication shop parts without smearing metal, masking defects, or altering the surface profile. We prepare the surface. Your NDT team runs the inspection.

Non-AbrasiveProfile PreservedCommercially InsuredLSO Certified

Prep the Surface. Find Every Defect.

Laser surface prep for non-destructive testing. We remove contaminants without smearing metal, masking cracks, or leaving residue that interferes with your inspection. You define the scope. We prepare the surface.

Get My Free Quote (417) 389-1322
OSHA/ANSI Compliant ★ Commercially Insured ★ LSO Certified ★ Mobile Service ★ Woman & Veteran Family Owned ★ OSHA/ANSI Compliant ★ Commercially Insured ★ LSO Certified ★ Mobile Service ★ Woman & Veteran Family Owned

BEFORE AND AFTER

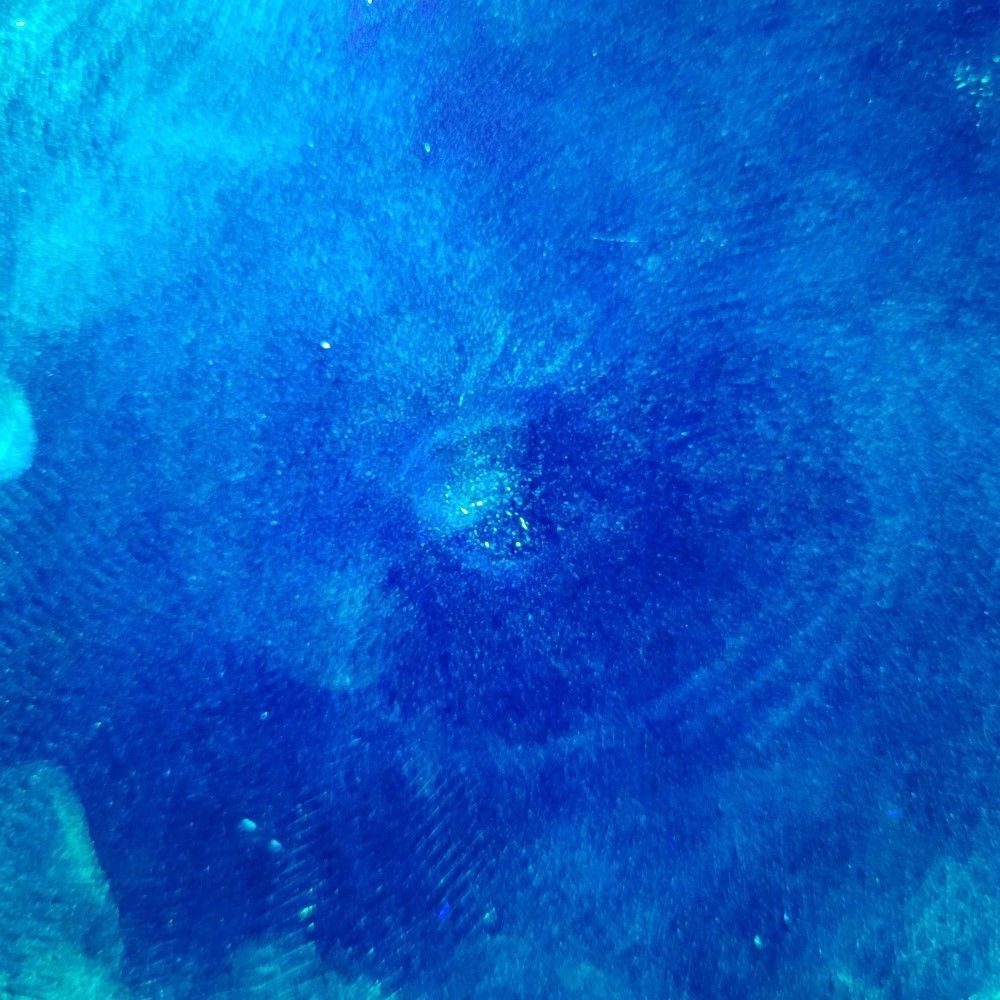

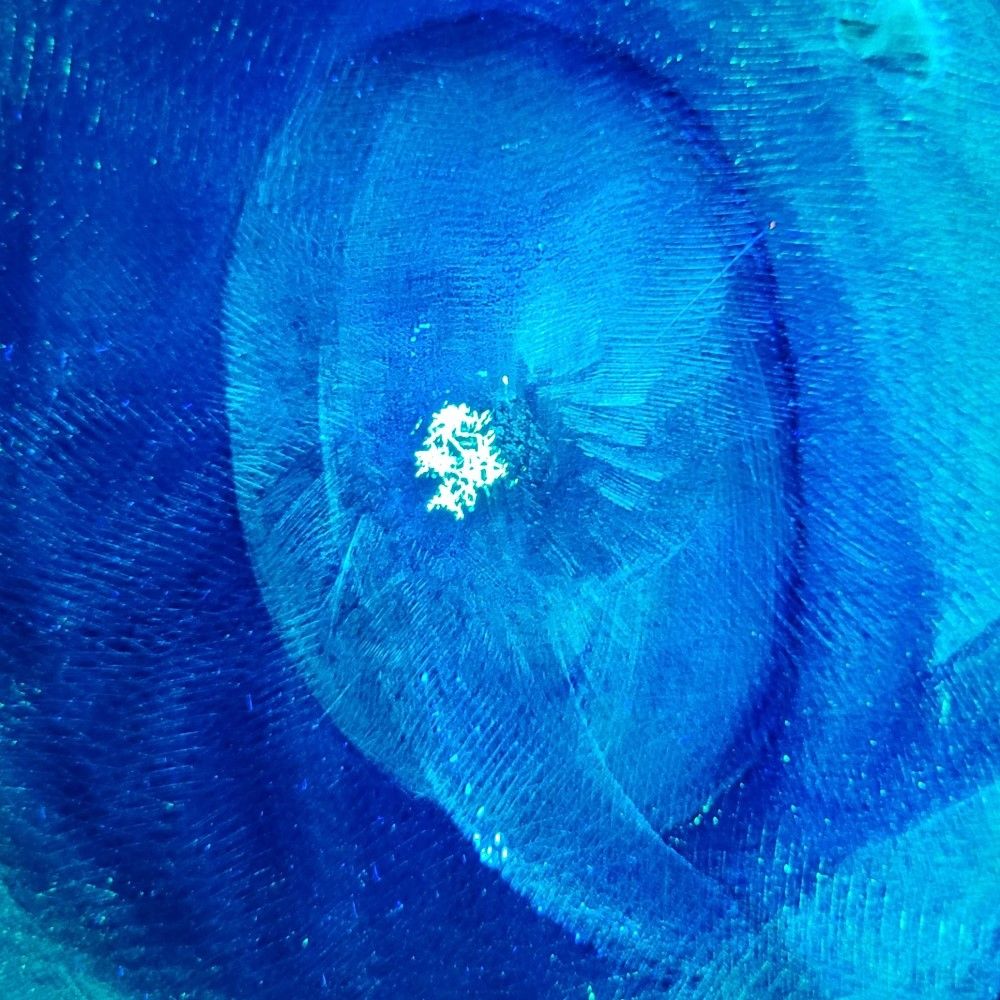

Weld surface prepped for dye penetrant testing. Contamination removed without smearing metal or masking surface-breaking discontinuities.

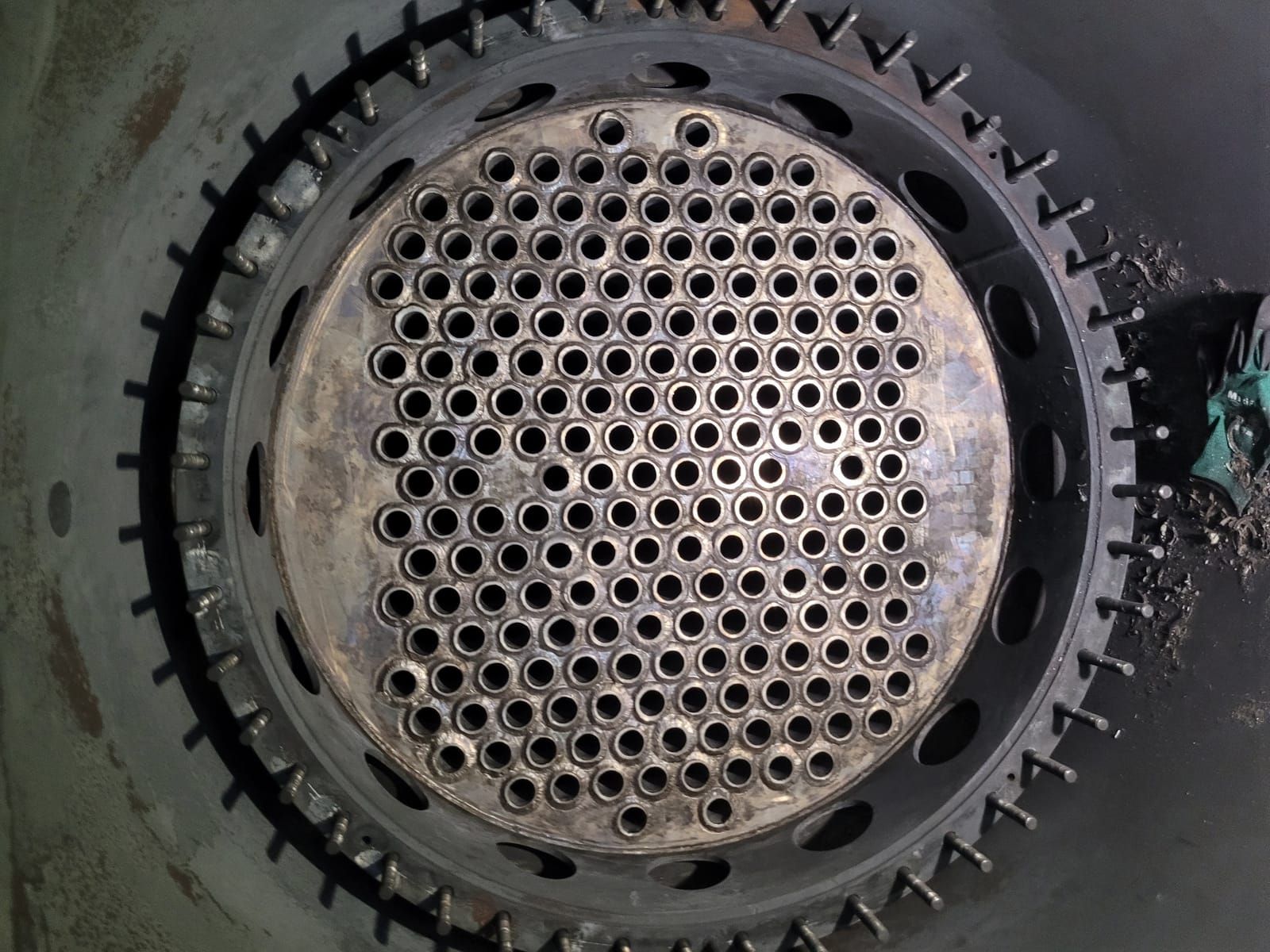

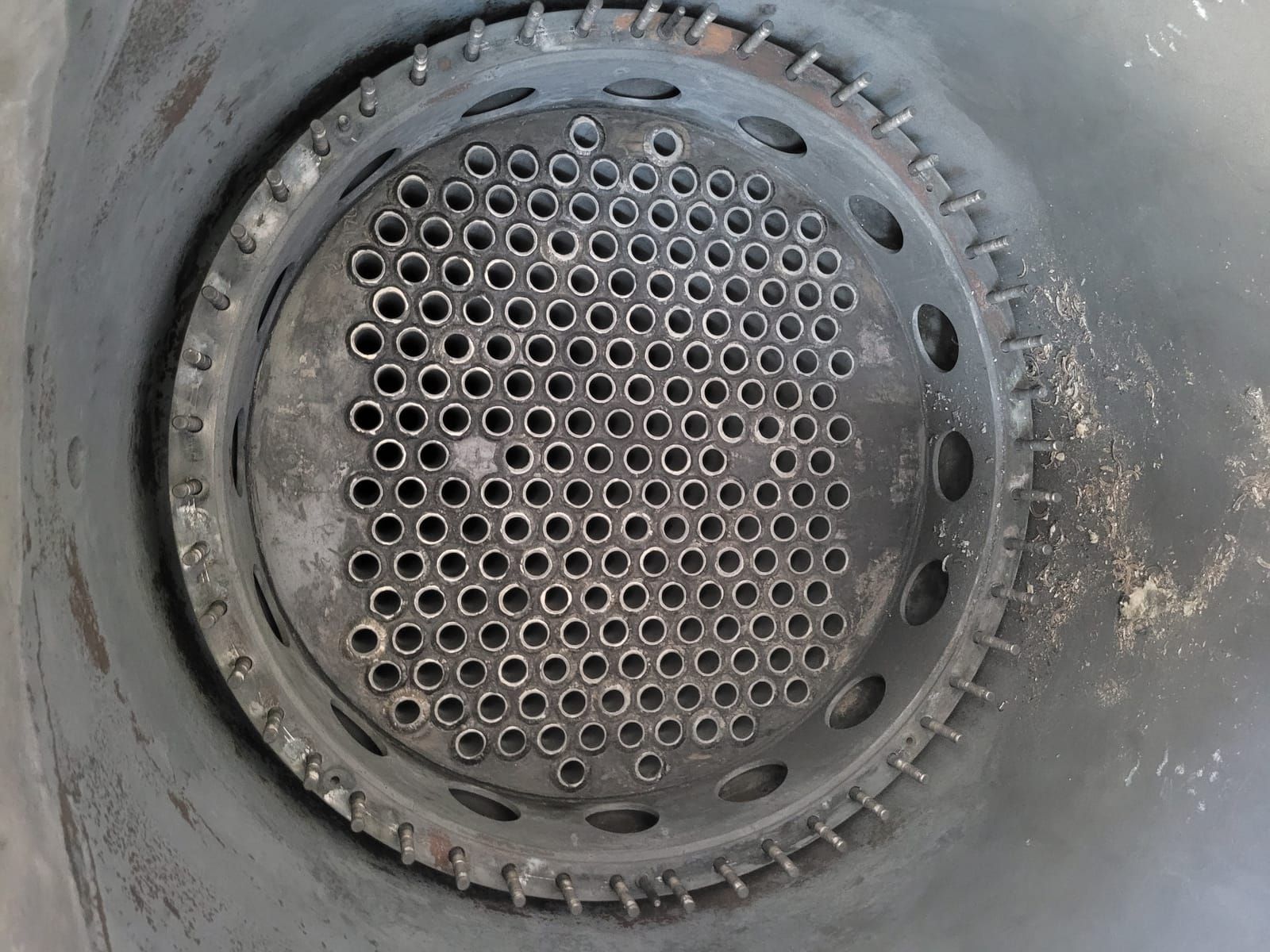

Tube sheet. Contamination and oxide removed. Surface ready for inspection with original profile preserved.

WHY NDT PROFESSIONALS CHOOSE LASER

Prep That Reveals Defects Instead of Hiding Them

No Surface Smearing

The laser vaporizes contaminants without physical contact. No metal folded over crack openings. No material pushed into discontinuities. What exists on the surface stays visible to the inspection.

No Embedded Media

No blast media lodged in pores, cracks, or weld discontinuities. Nothing left behind to block penetrant entry or interfere with magnetic particle indication.

No Chemical Residue

No solvents, no rinse steps, no residue on the surface. The cleaned area is ready for testing without additional preparation between cleaning and inspection.

Profile Preserved

The laser removes contamination, not base metal. Surface profile and dimensional characteristics are maintained for accurate ultrasonic thickness measurements and proper couplant coupling.

Selective Area Cleaning

The laser targets specific weld zones, heat-affected areas, or inspection targets without cleaning the entire component. During shutdowns where time determines cost, this precision matters.

Compatible Across NDT Methods

Laser-cleaned surfaces are compatible with dye penetrant testing, magnetic particle inspection, ultrasonic testing, eddy current testing, and visual inspection. One prep method for multiple test types.

Laser-cleaned surfaces are compatible with all standard non-destructive testing methods including dye penetrant testing, magnetic particle inspection, ultrasonic testing, eddy current testing, and visual inspection. Because laser cleaning is a non-contact process that vaporizes contaminants without altering the base metal surface, it does not introduce the complications that mechanical and abrasive methods create. There is no smeared metal that could close crack openings before a penetrant test. There is no embedded blast media that could block penetrant or couplant access to discontinuities. There is no chemical residue that could reduce test sensitivity. The cleaned surface preserves the original profile, which is critical for ultrasonic thickness measurements where accurate coupling depends on consistent surface conditions. For facilities running multiple inspection types during the same turnaround, laser prep provides a single preparation method that satisfies all of them.

HOW IT COMPARES

The Prep Method Affects the Inspection Result

NDT accuracy depends on what happens to the surface before the test. Every preparation method interacts with the substrate differently, and some of those interactions can affect what your inspection finds or misses. The method that gets the surface visually clean is not always the method that gets it inspection-ready.

Grinding

What it does well:

Fast, accessible, and available in every fabrication shop. For removing weld slag, excess material, and heavy scale, it gets the surface visually clean quickly.

Where it falls short:

Grinding can smear metal across the surface, folding material over crack openings. ASTM E1444 classifies grinding among operations that could cause surface-connected discontinuities. For dye penetrant testing, ASTM E1417 notes that treatments including sanding, buffing, and sandblasting can smear the surface.

Chemical Solvents

What it does well:

Dissolve oil, grease, and organic contaminants effectively. For removing non-bonded surface films before inspection, solvent cleaning is straightforward.

Where it falls short:

Solvent residue left on the surface can prevent dye penetrant from entering surface-breaking flaws. Solvents cannot remove bonded contaminants like rust, scale, or heavy oxide layers. Creates chemical handling and disposal requirements.

Abrasive Blasting

What it does well:

Removes rust, scale, and coatings across large areas quickly. Can reveal defects by stripping away coatings.

Where it falls short:

Can mask defects. Abrasive impact alters surface profile, embeds media in flaw openings, and packs debris into surface-breaking discontinuities. ASTM E1417 lists sandblasting among treatments that can smear surfaces.

The preparation method used before non-destructive testing directly affects inspection accuracy. Mechanical methods like grinding and abrasive blasting physically interact with the metal surface. Grinding can smear a thin layer of metal across crack openings, making surface-breaking discontinuities invisible to dye penetrant and magnetic particle tests. Abrasive blasting can embed media in flaw openings or alter the surface profile in ways that interfere with ultrasonic coupling. ASTM E1417, the standard governing liquid penetrant testing, specifically identifies sandblasting, sanding, buffing, and similar treatments as processes that can smear surfaces. Laser cleaning avoids these problems because the process is non-contact. The laser vaporizes contaminants from within defects without bending edges, folding metal, or leaving residue. The original surface geometry and any existing discontinuities remain exactly as they are, open and accessible to whatever inspection method follows.

Inspection-Ready Surfaces Start Here

Tell us what needs prep, which inspection methods your team will run, and when the turnaround window opens. We prepare the surfaces. Your NDT team runs the inspection.

Get My Free Quote (417) 389-1322

RELATED SERVICES

We Prepare the Surface. Your Team Handles the Rest.

Industrial Maintenance

Facility-wide cleaning for production equipment, structural steel, and heavy machinery. Same laser process, broader application scope.

Learn more

Rust Removal

Heavy corrosion on structural components, piping, or pressure vessel surfaces that needs more than inspection prep. Laser removes oxide layers down to clean metal.

Learn more

Paint and Coatings

Coating and paint removal before inspection, NDT, or weld testing. No surface profile alteration.

Learn more

COMMON QUESTIONS

What NDT Professionals Ask Us

Laser-cleaned surfaces are compatible with dye penetrant testing (PT), magnetic particle inspection (MT/MPI), ultrasonic testing (UT), eddy current testing (ET), and visual inspection (VT). The surface is clean, residue-free, and profile-preserved for all standard inspection methods.
Yes. We bring the laser to your site and work within your turnaround window. We coordinate with your maintenance and inspection teams to sequence surface prep ahead of the inspection schedule.
Grinding physically removes material and can smear metal across crack openings, potentially masking the defects the inspection is designed to find. Laser cleaning vaporizes contaminants without contacting the metal surface. Any existing discontinuities remain open and visible to the inspection method. Both methods get the surface visually clean. The difference is what happens to the defects underneath.
When parameters are set correctly for the specific material and contamination type, the laser removes the contaminant layer without measurably affecting the base metal profile. We test a small area first and adjust settings to confirm the contamination is removed while the substrate remains intact.
We prep steel, iron, aluminum, copper, and brass surfaces. Common applications include structural welds, pipe welds, pressure vessel seams, tank walls, heat exchanger tubes, and equipment components. If you have a specific alloy or component question, send us details and we will give you a direct answer.
Laser cleaning is a non-contact, non-abrasive cleaning method. It does not fall into the categories of surface treatments that ASTM standards identify as potentially smearing surfaces. The cleaned surface is suitable for subsequent penetrant and magnetic particle examination without etching. For code-governed work, the inspector and cognizant engineering organization make the final determination on preparation acceptability for their specific application.

Better Prep. Better Results. No Defects Hidden.

Tell us what needs prep, what inspection method follows, and when the window opens. We will tell you if laser prep fits the job.
